Fireproofing Inspection Kit
ASTM E-605, E-736


Qty: $595.00


Everything you need to test thickness, density (displacement method) and adhesion.

KIT INCLUDES ALL ITEMS PICTURED, WITH CARRYING CASE:

ASTM E-605 Thickness, Density:

Depth Gauge

Scraper

Serrated Knife

Beads

400 mL Beaker

(2) 250 mL Graduated Cylinders

Funnel

Straightedge





ASTM E-736 Adhesion:

2-part, 20 minute bond, Polyeurethane Adhesive

(30) Wooden Mixing Strips

(8) 2-3/4" Rigid Plastic Caps

Digital Pulling Scale

Part No. 91600
Accessories


Qty:
$57.00
Fireproofing Depth Gauge - Heavy Duty Probe
Measures thickness of fireproofing. 2-piece molded platic with steel penetration point.
P/N 91605


Qty: $25.74
Fireproofing Scraper 3 in. Blade
Scrape fireproofing of members. Brass Putty Knife/Scraper 3" W X 4-1/8" L Blade, Comfort Grip Handle.
P/N 91606


Qty: $48.69
Fireproofing Knife
To cut fireproofing. Polypropylene Handle, Scalloped 12" X 1-1/4" Blade.
P/N 91607


Qty: $89.00
Fireproofing #8 Lead Shot 800 mL
For use of density determination, displacement method.
P/N 91608


Qty: $12.98
400 mL Beaker
For use of density determination, displacement method. Polycarbonate beaker is break and shock resistant.
P/N 91609


Qty: $46.98
250 mL Graduated Cylinders, 2-set
Measures thickness of fireproofing. For use of density determination, displacement method. Polypropylene Graduated Cylinder W/O Handle, 250 ml Capacity, 2.0 ml Graduations.
P/N 91610


Qty: $11.74

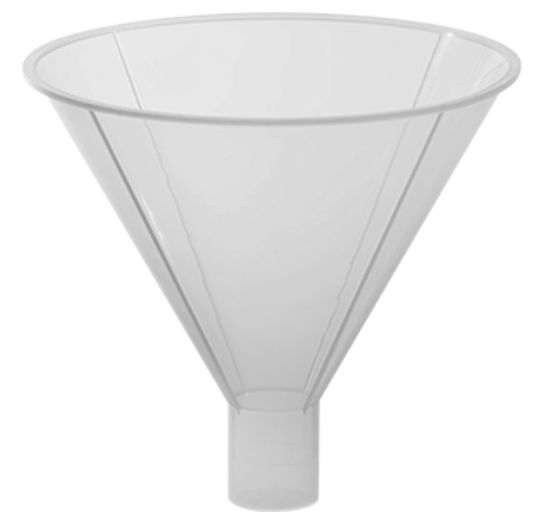

Fireproofing Funnel
For use of density determination, displacement method. Low-Density Polyethylene Funnel 1/2 Gallon Capacity, 7" Top OD, 8-1/2" O'all Height.
P/N 91611


Qty: $10.00
Fireproofing 6" Straight Edge
For use of density determination, displacement method. Clear Extruded Acrylic Rectangular Bar 3/16" Thick X 1/2" Width, 6' Length.
P/N 91612


Qty: $51.25
Fireproofing 2-part Polyeurethane Adhesive
For use of determining adhesion/bond strength. Fast acting, provides bond in 20 minutes. 2-Part Fireproofing Adhesion Polyeurethane Adhesive 1 pint (2 component urethane resin adhesive).
P/N 91613


Qty: $13.25
Fireproofing 2-3/4 inch Caps, 8-set
For use of determining adhesion/bond strength. Fireproofing Adhesion 2-3/4 inch Caps, Bond Strength 8-set.
P/N 91614


Qty: $15.50
Fireproofing 3-1/4 inch Caps, 8-set
For use of determining adhesion/bond strength. Fireproofing Adhesion 3-1/4 inch Caps, Bond Strength 8-set.
P/N 91619


Qty: $146.79
Fireproofing Digital Pulling Scale
For use of determining adhesion/bond strength. Digital Scale, reads towards user, Scale 88 lb x 0.2 res. Peak - hold function.
P/N 91615


Qty: $168.00
Steel Fireproofing Carrying Case
P/N 91616
