Concrete
Maturity Method Kit |
|
ASTM C-1074 |
 |
Maturity
method data acquisition system. |

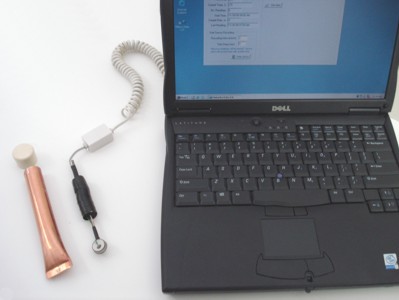

Complete kit, including (2) sensor assemblies, (4) thermowells and
caps, USB Adapter, software.
Qty:
$375.00
|
Part No. 4600 (Appr. Shp Wt 6 lbs). Complete
Kit. |
Thermowell only, Qty:
$9.50
|
Part No. 4610 (Appr. Shp Wt 2 lbs)
Thermowell |
Sensor Assembly only, Qty:
$125.00
|
Part No. 4630 (Appr. Shp Wt 3 lbs) Sensor Assembly. |
|
Description |
Purchase additional sensor assemblies to run multiple
channels concurrently.
|

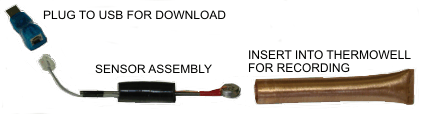

The small sensor internally records time-stamped temperatures
at user defined intervals. Simply plug the sensor assembly into a PC USB port and
start the sensor to begin internal recording. When concrete is placed, insert the
brass thermowell into the concrete to a specified depth, then insert the sensor
assembly into the thermowell and cap the thermowell. At any concrete age, remove
the sensor assembly from the thermowell and download timestamps and temperatures
to a PC. (Or download readings on-site using a laptop). Internal sensor recording
may then be stopped, or the sensor may be placed back into service. At the end of
testing, the thermowell is abandoned and the sensor's internal recording is stopped.
The sensor is retained for future testing. The sensor has an internal battery that
is rated for 10 years.
All interaction
of the sensor with a PC is done using the supplied software. The software also calculates
the Time-Temperature Factor (TTF) and Equivelant Age at each temperature reading.

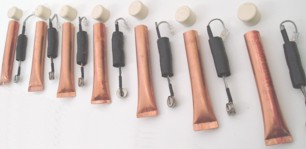

Additional sensor
assemblies may be purchased, so there is no limit to the amount of locations that
may be monitored at one time.
No interfacing hardware
is required to record or download temperature data, greatly reducing cost and risk
of theft or failure of on-site equipment.
|
|

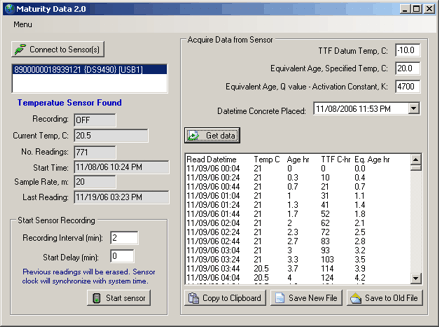

Screenshot |
 |
|
Specifications |
|
Specifications
|
|
|
Sensor: |
Computer chip enclosed in a 16 mm stainless steel canister |
|
Memory Bits Type: |
16, EEPROM |
|
Sensor Identification: |
Unique & unalterable address laser etched onto the
chip |
|
Clock/Calendar/Timer: |
Built-in real time clock - synchronized with setup PC's
system time |
|
Clock/Timer Accuracy: |
+/- 2 minutes per month for 0 to 45o C |
|
Thermometer Temp. Range: |
-55 to 100o C (-67 to 212o F) |
|
Thermometer Accuracy: |
+/- 1o C for -30 to 70o C |
|
Thermometer Resolution: |
0.5o C
|
|
Data Acquisition: |
Thermal history log |
|
Sensor Lifespan: |
10 years or 1 million temperature measurements |
|
Temp. Log Interval: |
User defined |
|
Maximum Log Size: |
2048 temperature readings |
|
Mission: |
Start/Stop temp. logging by user |
|
PC Data Download: |
Via 9-pin serial port (can be adapted to 25-pin serial
or USB) |
|
PC File Type: |
Files saved in Maturity Manager (.mmm) files. Data may
be pasted to an Excel or other application. |
|
Included in Maturity Manager Software: |
Serial port diagnostics tool |
|
|
Project and mix design information |
|
|
Time/Temperature sensor setup, downloading and communications |
|
|
Maturity curve logging and automatic calculation of strength/TTF
correlations |
|
|
Graphical plotting of strength/TTF points |
|
|
Field maturity logging - up to 10 single field locations
per saved file |
|
|
Professional, printable presentation report including
curve and field data. |
|
|
Easy to follow instructions |
|
|
All sensors, holders, adapters and other physical hardware,
and depictions thereof, on this page, noteably the sensor iButton, snap holder,
adapter cord and USB adapter, are registered trademarks of Dallas Semiconductor
Corp., Dallas, TX. |
