Concrete Moist Room Controller Model 6200
Regulates temperature, humidity, and saturation; records timestamped temperature and humidity readings.

Concrete moist rooms. ASTM C511 compliance package. Compact sensor is placed in the moist room.

Complete Kit, Qty:

Part No. 6200 (Appr. Shp Wt 22 lbs).

Concrete moist rooms. ASTM C511 compliance package. Compact sensor is placed in the moist room.

4 wall mount holes on controller.
1-year warrantee with unlimited tech support

PC controlled

Continuous recording of temperature and humidity to PC

Controlls heating and cooling from user defined setpoints

Regulates mister at user defined intervals

Single module detects both temperature and humidity

Plug heat/cool/mist power cords into controller (120VAC)

One cable runs from controller to PC

Utilizes (1) PC USB port

Laptop or netbook with system pre-installed and tested (may be differant than photo above)

Records temperature/humidity/timestamp to native, text, csv, or Excel files at user defined intervals

Software detects temperature trends to avoid heating in the summer or cooling in the winter

Temperature resolution 0.0625 oC (+/- 0.5 oC Accuracy) Humidity resoultion 0.04 % RH.

What’s included with Moist Room Controller:

* PC USB Adapter

* Cat5 Cable

* Cat5 Coupler

* 3-Switch Controller

* Temperature/Humidity Sensor with Cable

* Sensor Cable Coupler and Extension

* Power Cord

* Windows Laptop/Netbook, Installed & Tested

* Software

* Detailed, easy to use instructions

Sensor Assembly Only, Qty:   $258.00

Replacement Sensor Assembly
Part No. 6210
(Appr. Shp Wt 3 lbs).

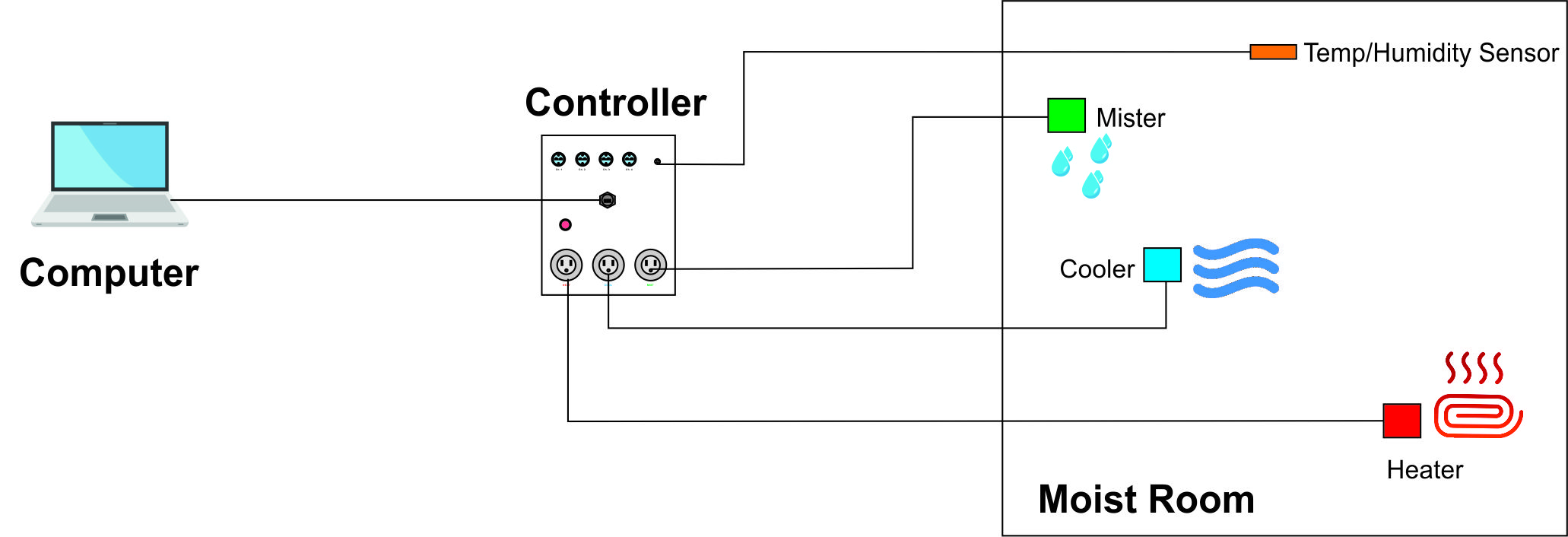

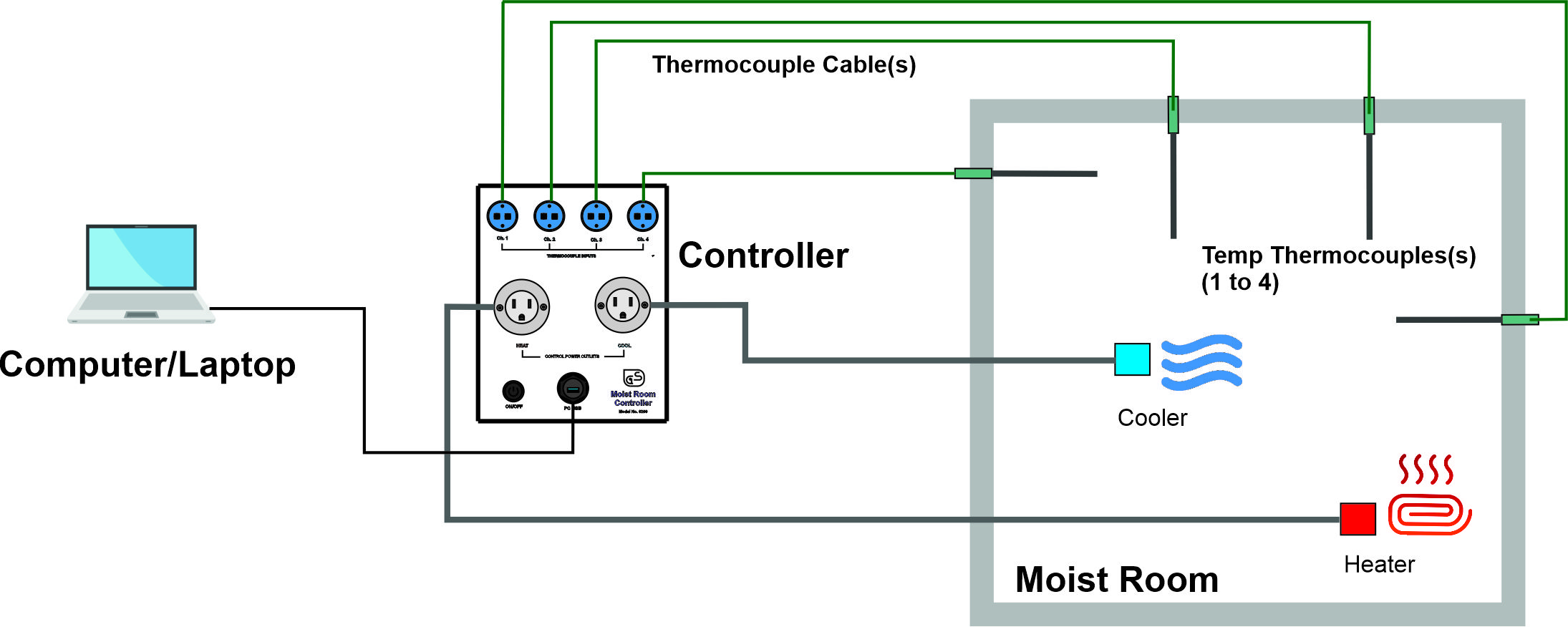

Typical Installation

Download Version 2

Download Current Version 3

Download 1-Wire Sensor Drivers 4.02: 32-Bit  or 64-Bit
Download Visual Java: 32-Bit  or 64-Bit
Download USB Serial Port Driver

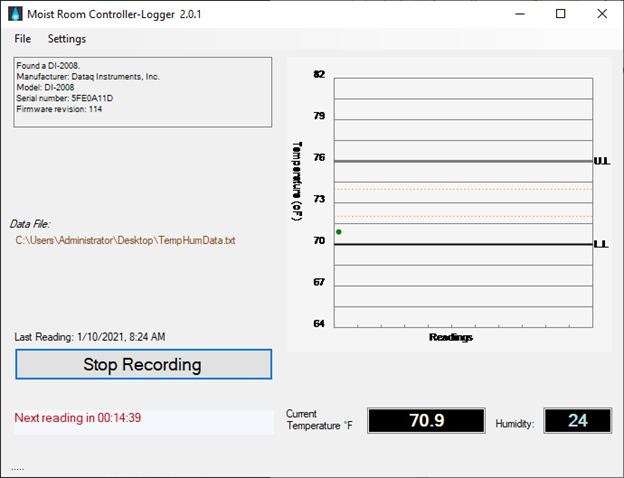

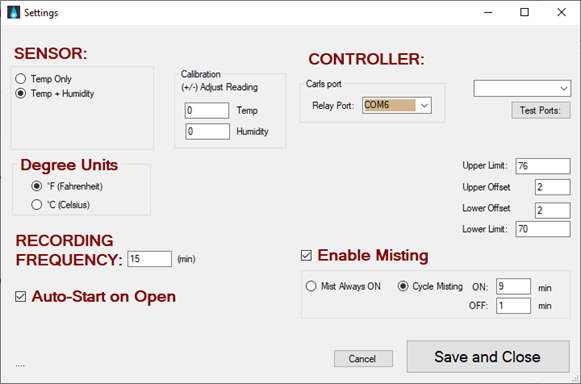

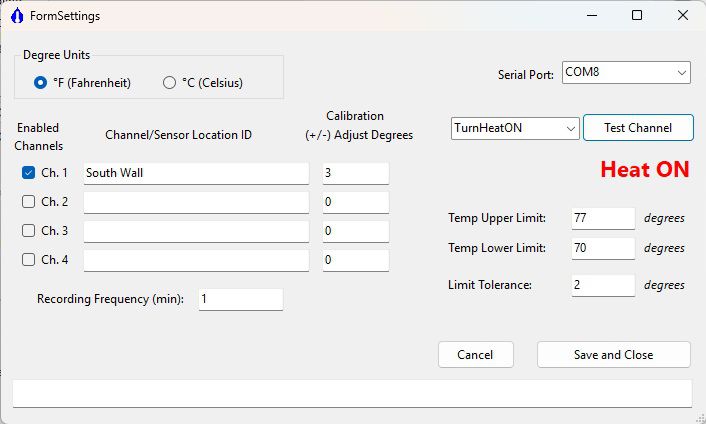

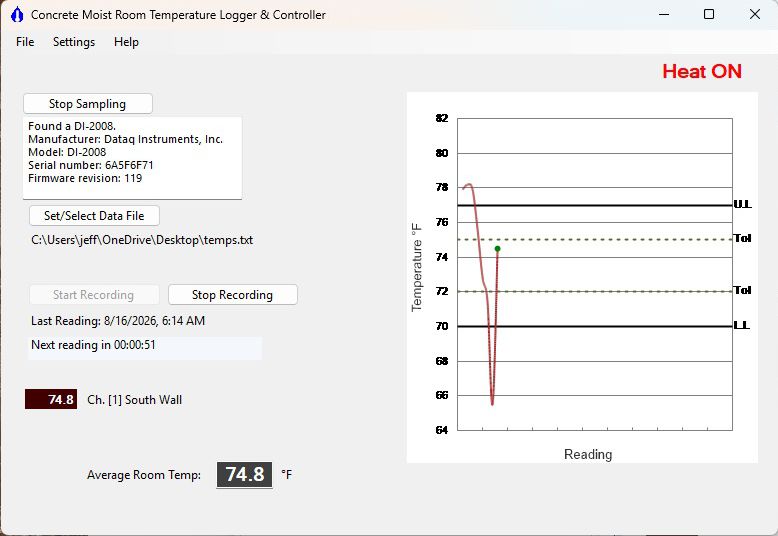

Screenshot below

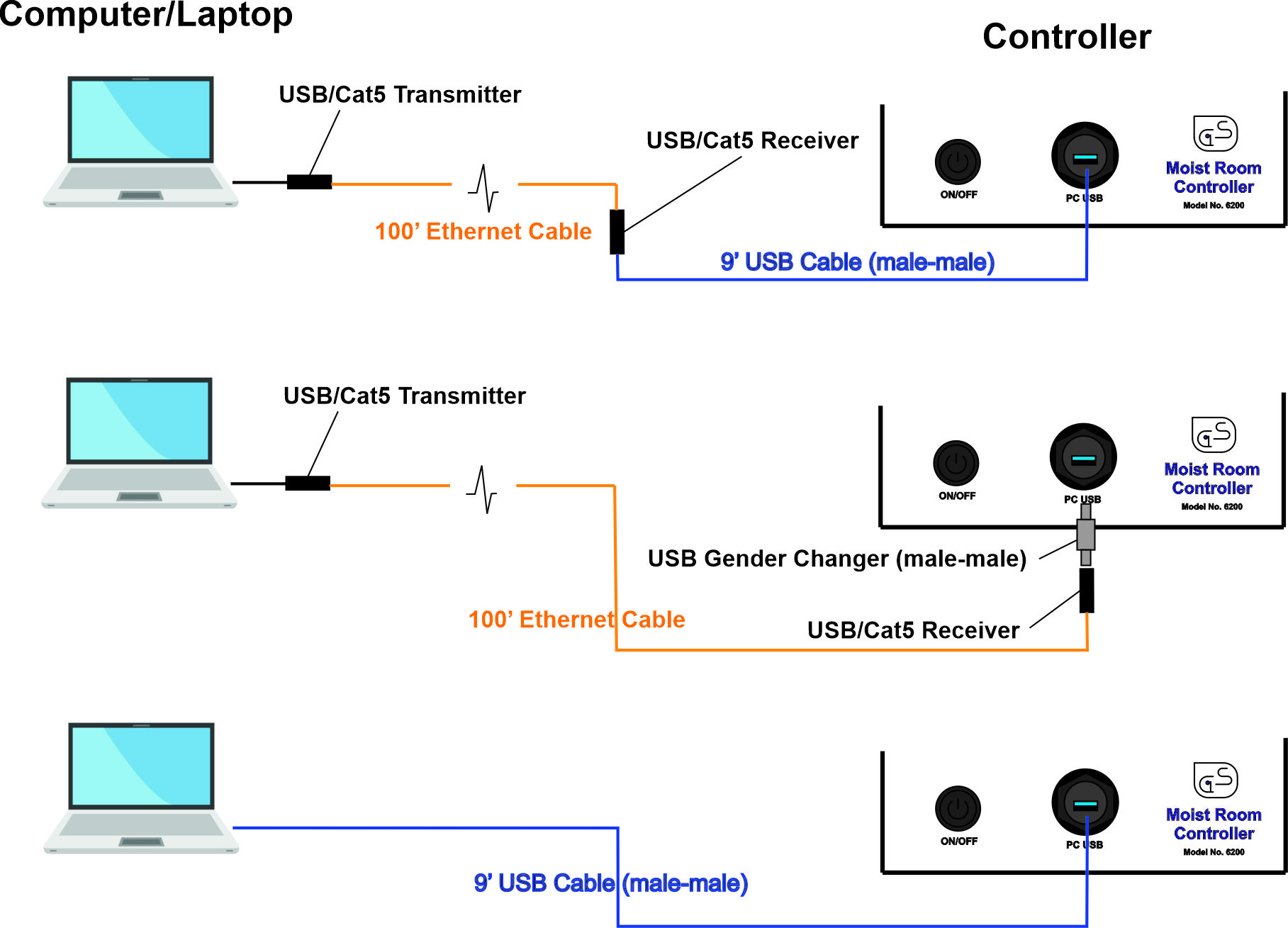

Controller to PC  Controller Interface RJ45 plug/Cat5 cable to serial port (optionally to Serial/USB adapter to USB)
Controller to PC Sensor Interface (integrated with above into 1-Cat5 cable) RJ45 plug/Cat5 cable to RJ11/USB port adapter
Sensor to Controller Interface Sensor-Phone wire to RJ11 plug
Heating/cooling/mister to Controller interface Heating, cooling and/or mister power cords plug directly into controller
Controller power Power cord to 120 VAC wall outlet
Sensor Maxim DS1923 iButton
Digital Hygrometer Measures Humidity with 12-Bit (0.04%RH) Resolution
Operating Range: -20 to +85°C; 0 to 100%RH (see Safe Operating Range)
Digital Thermometer Measures Temperature with 11-Bit (0.0625°C) Resolution
Temperature Accuracy Better than ±0.5°C from -10°C to +65°C with Software Correction
Built-in Humidity Sensor for Simultaneous Temperature and Humidity Logging
Capacitive Polymer Humidity-Sensing Element
Hydrophobic Filter Protects Sensor Against Dust, Dirt, Water, and Contaminants
Individually Calibrated in a NIST-Traceable Chamber
Sensor PC USB Adapter Maxim DS9490R, internal 64-bit address
Controller Serial/USB Adapter USBGear USBG-232
RoHS compliant, CE and FCC approved
RS232 DB9 male port Speed up to 921.6kbps no external power supply
High speed serial port with the 128 byte FIFO
Hardware Specifications Ports One RS232 port Speed up to 921.6kbps RS232 signals TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND Power USB bus powered
Controller Board L: 5-1/2" W: 4-1/2" H: 1-1/2"
9-12 volt dc @ 500mA power supply
Draws about 20mA in idle state
8 Relay Outputs, relay ratings: 24VDC@15A, 120VAC@15A, 250VAC@10A

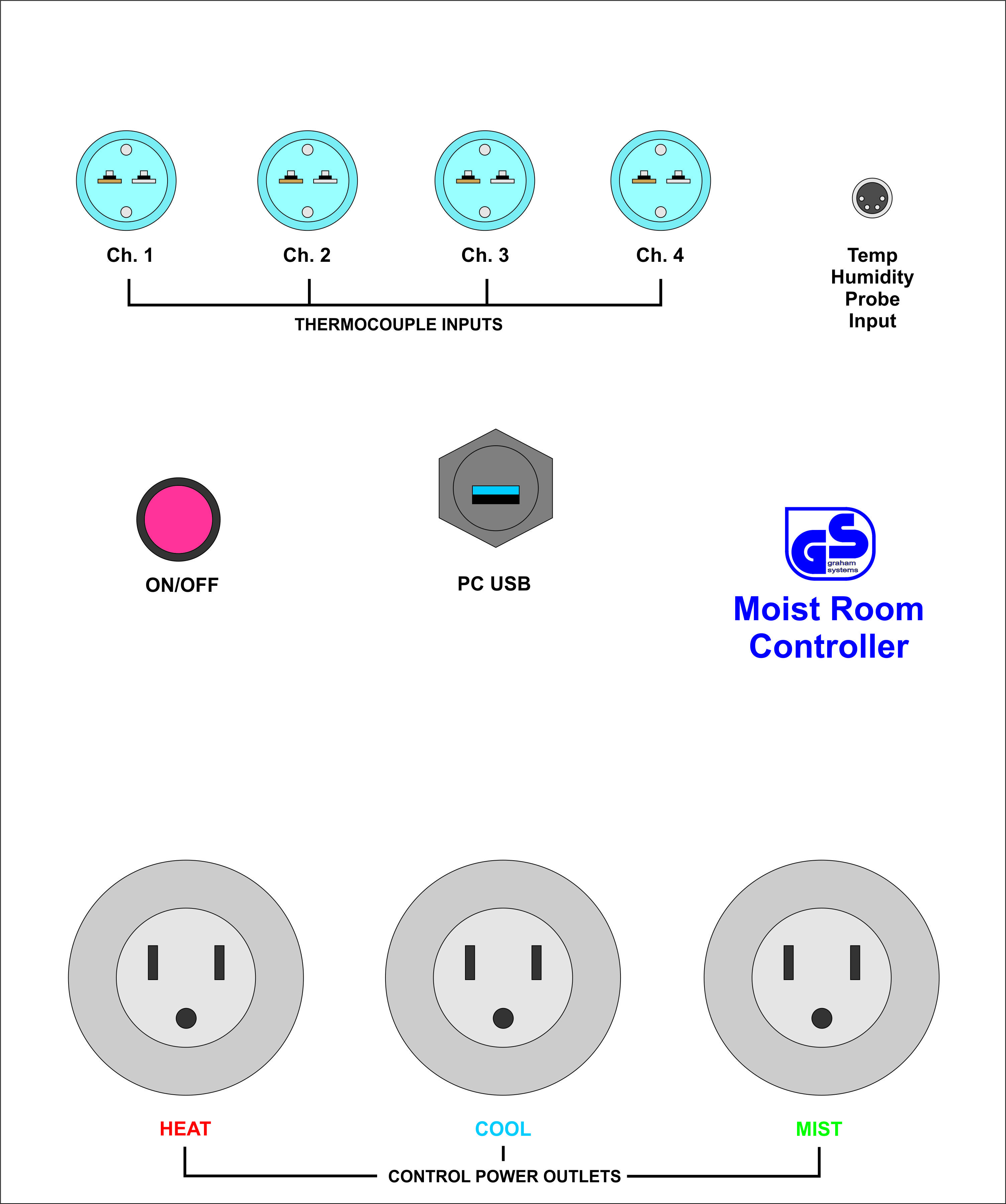

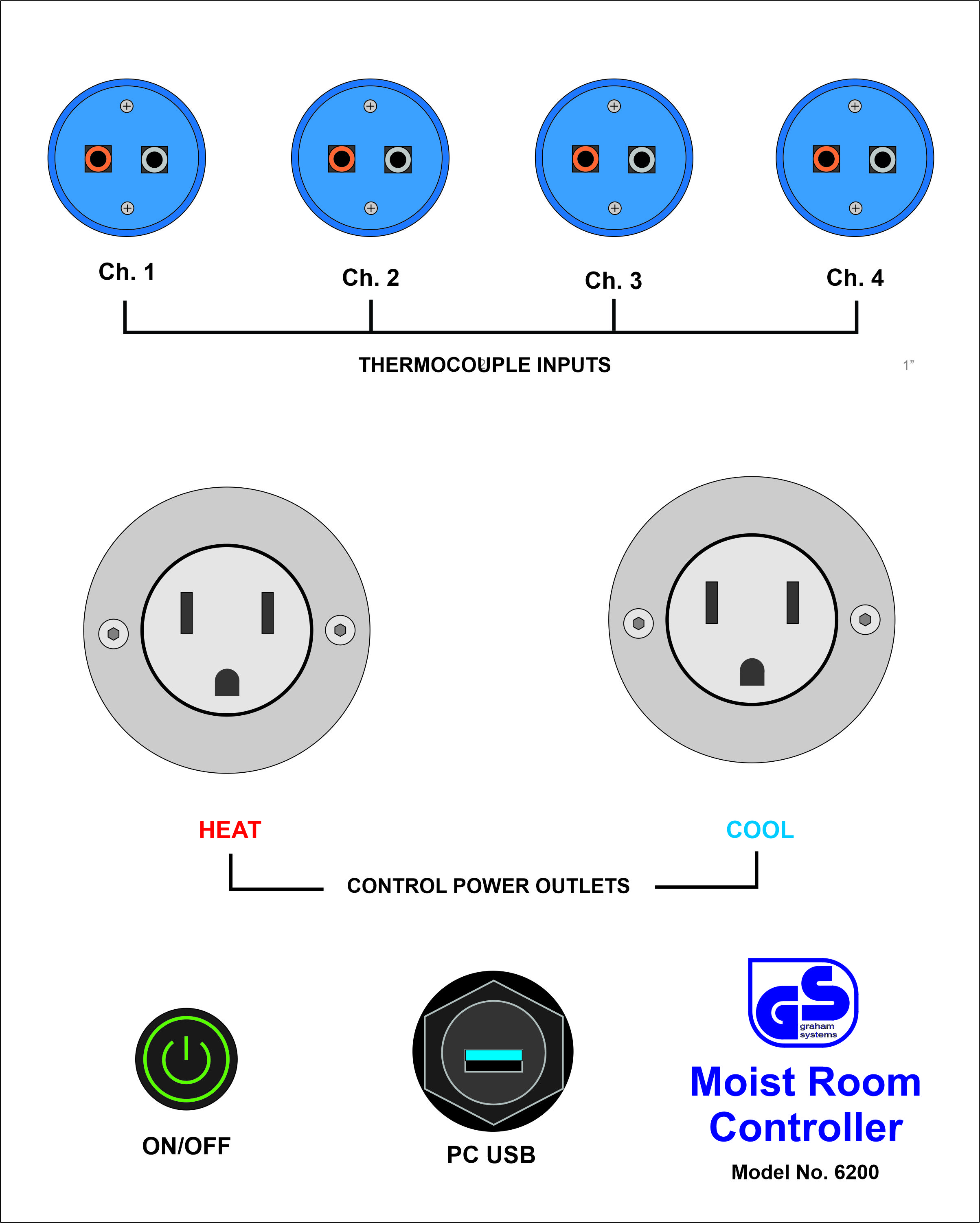

Enclosure Box 7.50 x7.50 x2.62 Box w/ Mounting Bracket-black
3-controlled power outputs (to heat/cool/mist)
1-RJ11 input jack (from sensor)
1-RJ45 input jack (to PC)
1-power jack (from wall outlet)

All sensors, holders, adapters and other physical hardware, and depictions thereof, on this page, noteably the sensor iButton, snap holder, adapter cord and USB adapter, are registered trademarks of Dallas Semiconductor Corp., Dallas, TX.
