CONCRETE TEMPERATURE RECORDER - DATA LOGGER |
|
Automated concrete
temperature logging at any location. Download to tablet or laptop. |
 |

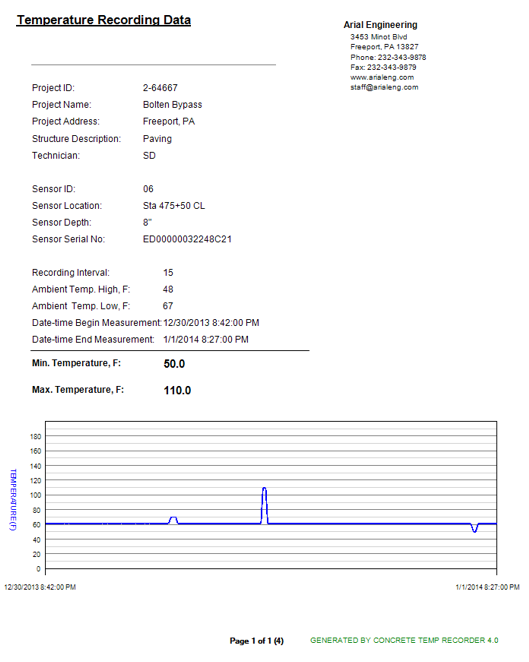

Monitor and record the internal temperature of concrete throughout the initial curing process. Embedded sensors record temperature internally. Temperature data and graphs may be downloaded to a laptop or tablet (with USB port) at any time during the curing process. |
|
|
|
Qty:
$158.00
|

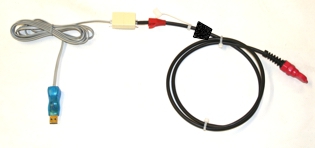

TEMP CONTROL COMPLETE KIT. Part No. 7200
(Approx. Shp Wt 4 lbs) |
 |
What’s
included with Temp Control Kit:
* Temperature Sensor Assembly with 4 ft. cable
* Coupler
* 7 ft. Communication Extension Cable
* USB Port Adapter
* Software
* Detailed, easy to use instructions
|
 |
|
In-place concrete, laboratory spaces, concrete
sample moist rooms, on-site concrete storage boxes, on-site cold-weather enclosures,
any controlled facility.
|
ADDITIONAL SENSOR ASSEMBLY WITH 4 Ft. CABLE
Part No. 7210
(Approx. Shp Wt 2 lbs)
Qty:
$80.75
|
 |
Temperature Probe Cable Assemblies may be re-used for internal concrete temp logging using 3/4" PVC pipe.
|
ADDITIONAL
SENSOR ASSEMBLY WITH 10 Ft. CABLE
Part No. 7220
(Approx. Shp Wt 2 lbs)
Qty:
$83.75
|
 |
VERIFY COMPLIANCE BY MAINTAINING DETAILED RECORDS OF TEMPERATURE CONDITIONS.
|
 |
* Water-tight temp sensor/logger. Readings recorded in sensor memory. |
 |

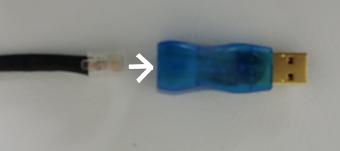

* RJ12 jack on sensor cable plugs into USB Adapter. Adapter plugs into USB port of a PC/laptop/tablet. |
 |

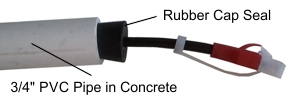

* Probe Assembly may be inserted into 3/4" PVC or copper pipe (thermowell) embedded into concrete at a specified depth. Rubber plug seals the thermowell. |
|
Temperature sensor
resolution 0.0625 degC (+/- 0.5 degC Accuracy).
"Combined" sensor temperature resolution
0.0625 degC (+/- 0.5 degC Accuracy). Humidity resolution 0.04 % RH.
Attach to the PC USB Adapter. Using software,
select recording interval and begin recording session for remote applications. Re-attach to USB port and download data
to a PC file.

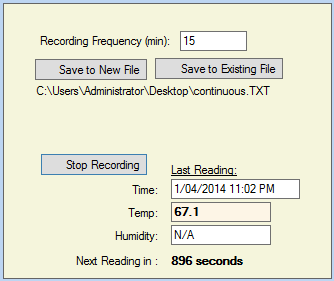

Also records directly to a PC for continuous recording directly to file.
Detach sensor and place in working environment.
"Combined" sensor internally stores up to 4096 datetime, temperature, and humidity
readings. "Temperature Only" sensor stores 2048 datetime and temperature readings.
|
 |
Recording sensor is the size of a nickel.
|
 |

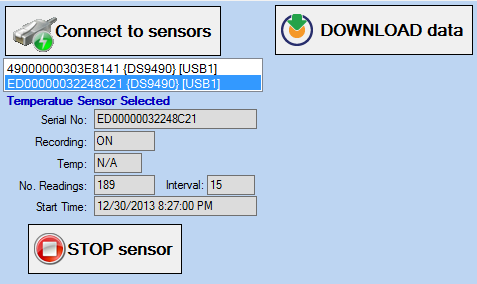

Attach to the PC USB Adapter. Using software, select recording interval and begin
recording session for direct connection, or download sensor internal readings from
remote applications. |
|

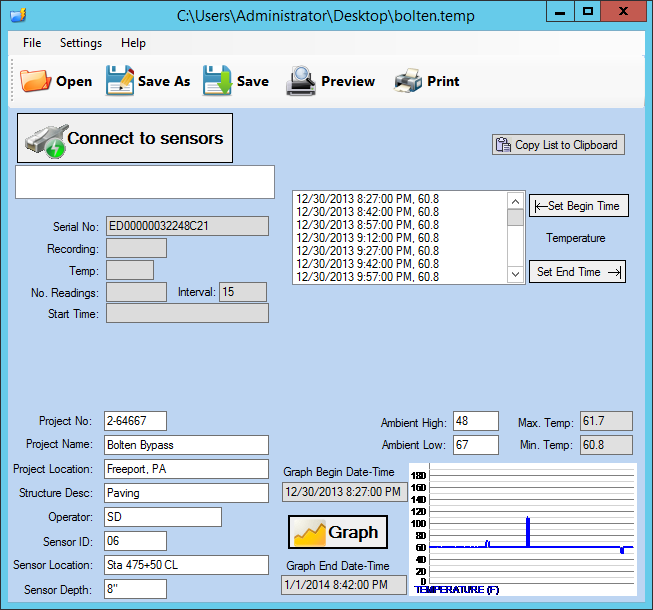

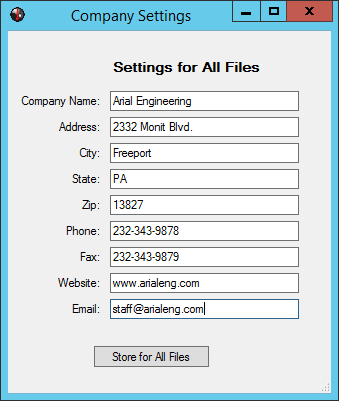

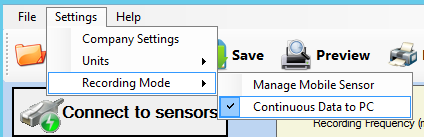

Software
Screenshots |
|
|
All sensors, holders, adapters and other physical hardware,
and depictions thereof, on this page, noteably the sensor iButton, snap holder,
adapter cord and USB adapter, are registered trademarks of Dallas Semiconductor
Corp., Dallas, TX. |
