Concrete Curing Tank Temperature Recorder 7300

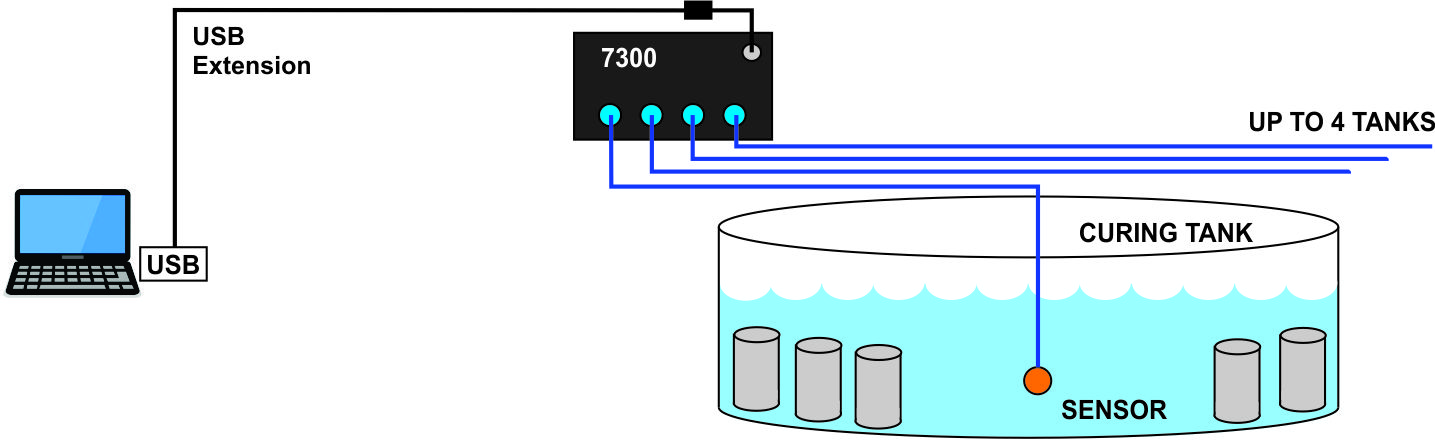

Records temperatures from one or more curing tanks directly to a PC.
Concrete curing tanks. ASTM C511 compliance package. Waterproof sensor is placed in the tank(s).
Complete Kit - 1 Sensor, Qty:
$950.00
Part No. 7300
(Appr. Shp Wt 5 lbs).
Additional Sensor Assembly, Qty:
$110.00
Part No. 7310
(Appr. Shp Wt 2 lbs).
Continuous recording of temperature to PC/Laptop

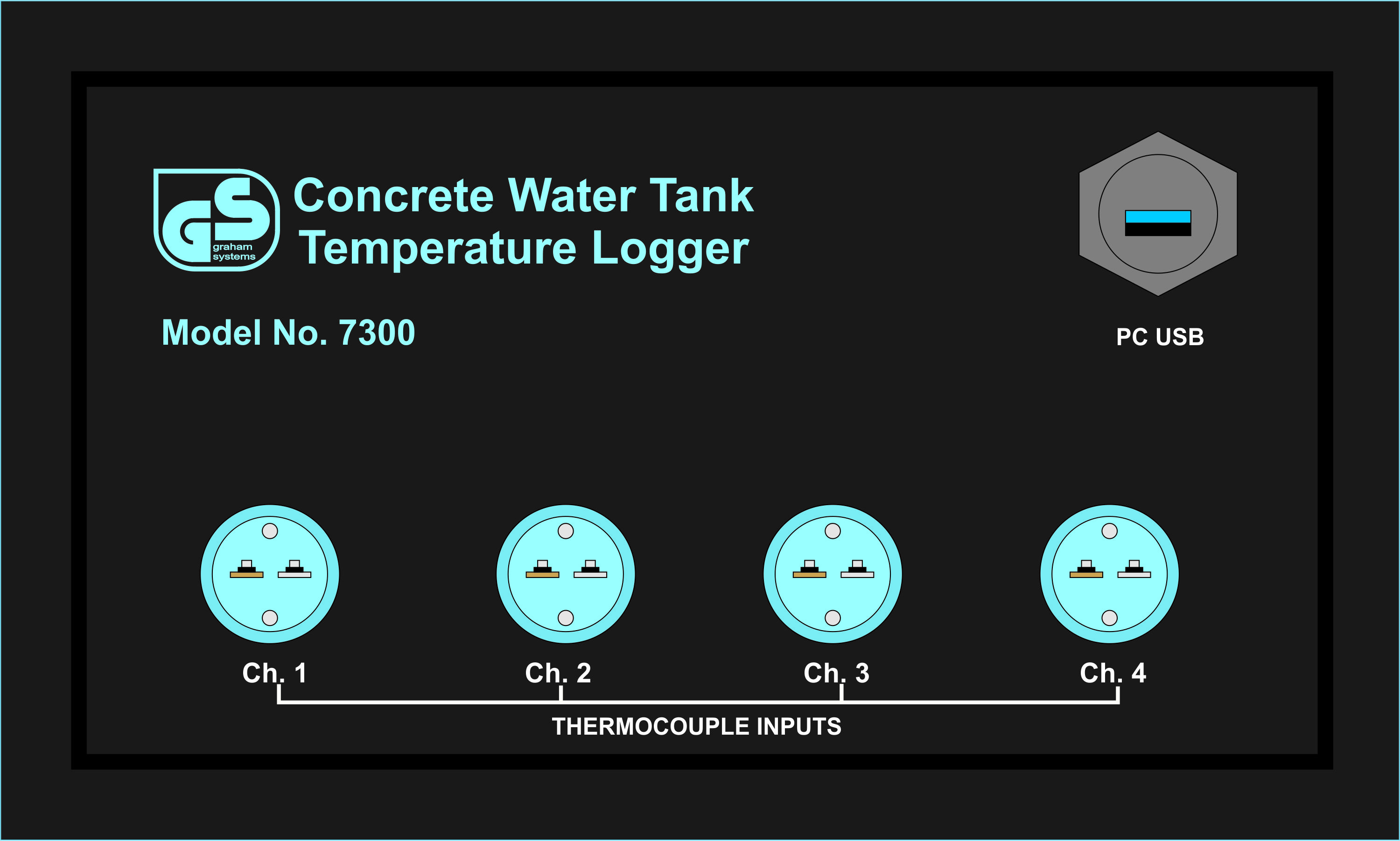

7300 Tank Logger Controller Box
1-year warrantee with unlimited tech support.
Up to four tanks may be monitored.
One USB cable connects to PC,
Utilizes (1) PC USB port
Records temps/timestamp to txt, csv, or xls files
Record at user defined intervals
What’s included with the Tank Logger Standard Kit:
* 7300 Temp Logger Controller Box with (4) four Sensor Jacks
* 30 foot USB Extension Cable
* (4) Type T Thermocouple Sensors with 25’ Cable
* Software
* Instructions

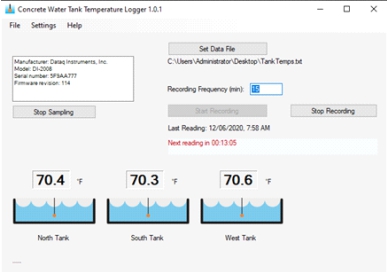

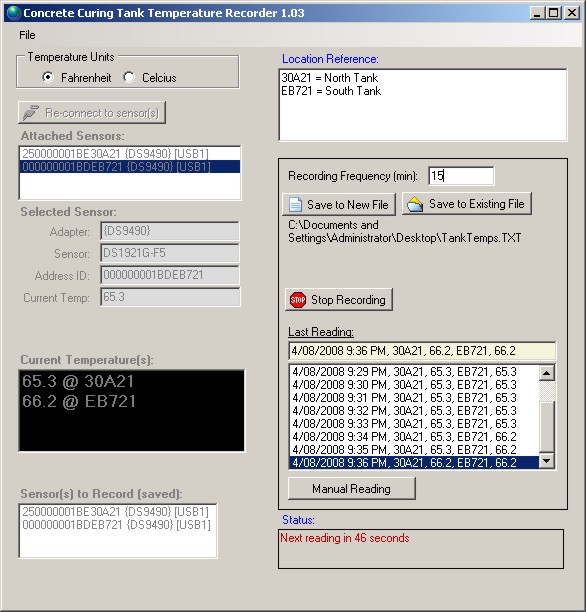

SOFTWARE
SPECIFICATIONS
Controller Box to PC Interface
USB 2.0 or 3.0
Temperature Sensor
Type T Thermocouple
Temperature Resolution
0.1 degrees
Temperature Accuracy
+/- 0.3 degrees
